Apple Sauce Production Line | Smooth & Chunky Styles | Turnkey Food Processing
  • Apple Sauce Production Line | Smooth & Chunky Styles | Turnkey Food Processing
  • Apple Sauce Production Line | Smooth & Chunky Styles | Turnkey Food Processing
  • Apple Sauce Production Line | Smooth & Chunky Styles | Turnkey Food Processing
  • Apple Sauce Production Line | Smooth & Chunky Styles | Turnkey Food Processing
  • Apple Sauce Production Line | Smooth & Chunky Styles | Turnkey Food Processing
  • Apple Sauce Production Line | Smooth & Chunky Styles | Turnkey Food Processing
  • Apple Sauce Production Line | Smooth & Chunky Styles | Turnkey Food Processing
  • Apple Sauce Production Line | Smooth & Chunky Styles | Turnkey Food Processing
  • Apple Sauce Production Line | Smooth & Chunky Styles | Turnkey Food Processing

Apple Sauce Production Line | Smooth & Chunky Styles | Turnkey Food Processing

Место происхождения Шанхай, Китай
Фирменное наименование Gofun
Сертификация CE, ISO
Номер модели GFM-APL, GFM-ppl
Подробная информация о продукции
Гарантия:
1 год
Предоставляется послепродажное обслуживание:
Инженеры, доступные для обслуживания оборудования за рубежом
Напряжение:
220/380/440В по желанию заказчика
Сертификация:
CE/ISO9001
Тип:
Линия обработки под ключ
Материал:
Food Standard SUS 304, 316, Accourning to Center
Емкость:
20t/день ~ 1500t/день, по словам клиентов
Приложение:
Яблоко, груша
Название продукта:
Линия обработки яблочного/грушевого сока
Конечные продукты:
NFC Сок, облачный сок, прозрачный сок, концентратный сок, напитки
Специальный процесс:
HPP (обработка высокого давления), UHP (обработка сверхвысокого давления)
Выделить:

Apple sauce production line with warranty

,

Turnkey apple processing line

,

Smooth and chunky apple sauce equipment

Условия оплаты и доставки
Количество мин заказа
1 комплект
Цена
Возможен торг
Упаковывая детали
Международный стандартный пакет для доставки
Время доставки
45~90 дней
Условия оплаты
Т/Т, Вестерн Юнион, Л/К
Поставка способности
20 комплектов в год
Описание продукта

Apple Sauce Production Line | Smooth & Chunky Styles | Turnkey Food Processing

We offer comprehensive apple sauce production lines designed to produce both smooth and chunky-style apple sauce for retail, baby food, and bakery ingredient applications. The process includes washing, sorting, peeling and coring (optional), steaming, pulping/finishing, refining, deaeration, sterilization, and hot-filling or aseptic filling. Our paddle-type finishers and disintegrators effectively separate skins and seeds from the edible pulp, achieving a smooth or textured consistency based on your recipe requirements. The line is highly versatile – with simple adjustments, it can also process pears, peaches, mangoes, and other fruit purees, maximizing your equipment utilization. Daily processing capacities range from 10 to 500 tons. All systems feature CIP automatic cleaning to ensure hygiene and reduce downtime. We provide end-to-end support from plant layout to commissioning, helping you bring premium apple sauce products to market quickly and efficiently.

Technical Specifications
Product Name One-stop solution for apple processing line
Fresh Fruit Inlet Capacity 500kg per hour ~ 25 tons per hour, customized
Raw Material Fresh apple
End Products Apple pulp, apple puree, apple juice, apple jam, dry apple and more
Final Product Brix 10%~12%
Final Packaging Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine Material Food grade SUS304 or SUS316
Warranty 12 months after commissioning
Operators Required About 10~12 persons
Voltage 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Key Advantages Energy-saving, High efficiency, Water-saving, Stable performance

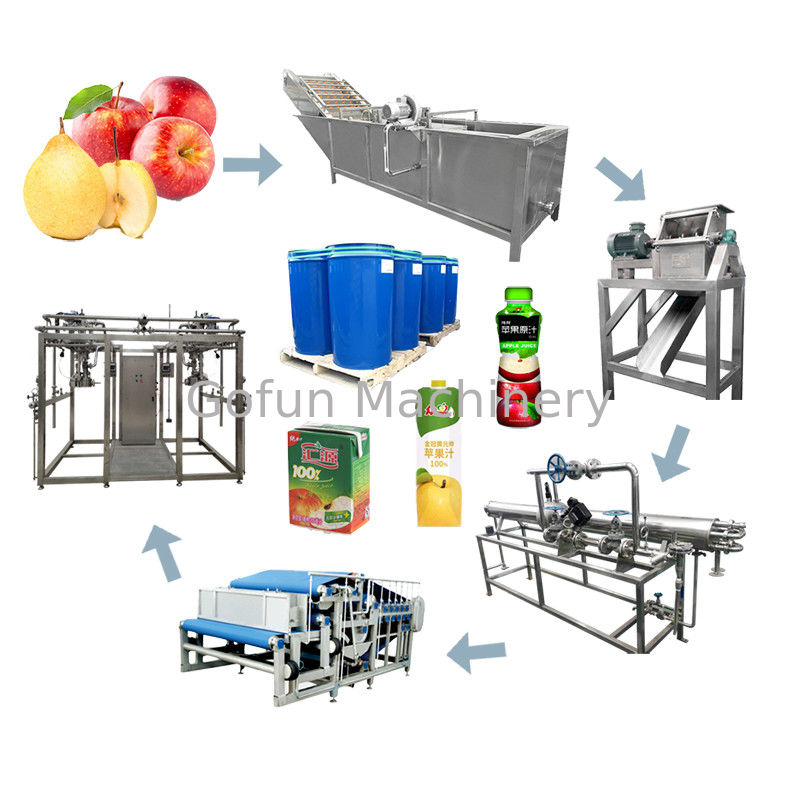

Production Process Overview
1Discharge Platform
Fresh apples are unloaded from trucks using a dedicated platform with water guns and transported to the production line via water flow. This area also serves as a pre-washing station before processing begins.
2Elevator
Transports fresh apples from external receiving areas into the processing facility.
3Washing
Fresh apples undergo thorough cleaning before skin and seed removal. Additional cleaning stages, including ultrasonic and ozone cleaning, can be integrated for enhanced sanitation.
Industrial apple washing machine with multiple cleaning stages
4Sorting
After washing, apples are visually inspected by operators to identify and remove any defective fruit, ensuring only quality produce proceeds to processing.
Quality control sorting station for apple inspection Close-up view of apple sorting conveyor system
5Crushing
GFM-FC series crushers utilize advanced technology for high-precision crushing of apples and other fruits. This fine grinding process enhances the efficiency of subsequent processing stages.
Industrial fruit crusher machine for apple processing
6Preheating
Crushed material is heated to temperatures between 45°C and 85°C. This step improves juice yield in subsequent extraction while preserving color and flavor characteristics.
Temperature-controlled preheating system for apple mash
7Belt Type Juice Extractor
Advanced belt press technology delivers high-efficiency juice extraction with over 70% yield. Features energy-saving design and automated control for optimal performance.
High-capacity belt press juice extractor for apples
8Sterilizing
Tube sterilizers process apple puree and applesauce at ultra-high temperatures (approximately 115°C for 30 seconds) followed by immediate cooling. This preserves taste and nutritional content while ensuring product safety.
Industrial tube sterilization system for apple products Control panel and monitoring system for sterilization process
9Aseptic Filling
Closed-loop aseptic filling systems work in conjunction with sterilizers. The filling chamber maintains vapor protection and sterile conditions, with mirror welding technology ensuring clean, smooth surfaces. Includes CIP and Auto SIP capabilities for various packaging formats.
Aseptic filling machine for sterile packaging of apple products Automated aseptic filling line operation
10Storage or Blending
Finished products can be stored directly or used as raw materials for further processing into apple sauce, ketchup, or other value-added products.
Storage tanks and blending systems for processed apple products
