Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution

Место происхождения	Шанхай
Фирменное наименование	Gofun
Сертификация	ISO, CE certification
Номер модели	GFM-TPL

Подробная информация о продукции

Емкость:

Индивидуальные

Особенность:

Высокая эффективность, дешевая стоимость

Использование:

Производственная линия томатной пасты

Напряжение:

Индивидуальные

Гарантия:

1 год

Предоставляется послепродажное обслуживание:

Инженеры, доступные для обслуживания техники за рубежом

Тип:

Линия обработки под ключ

Масса:

На основе конкретных машин

Материал:

СУС304

Состояние:

новый

Условия оплаты и доставки

Количество мин заказа

1 КОМПЛЕКТ

Цена

negotiable

Упаковывая детали

Международный стандартный пакет для доставки

Время доставки

90 дней

Условия оплаты

Т/Т,Л/К,Вестерн Юнион

Поставка способности

20 комплектов в год

Описание продукта

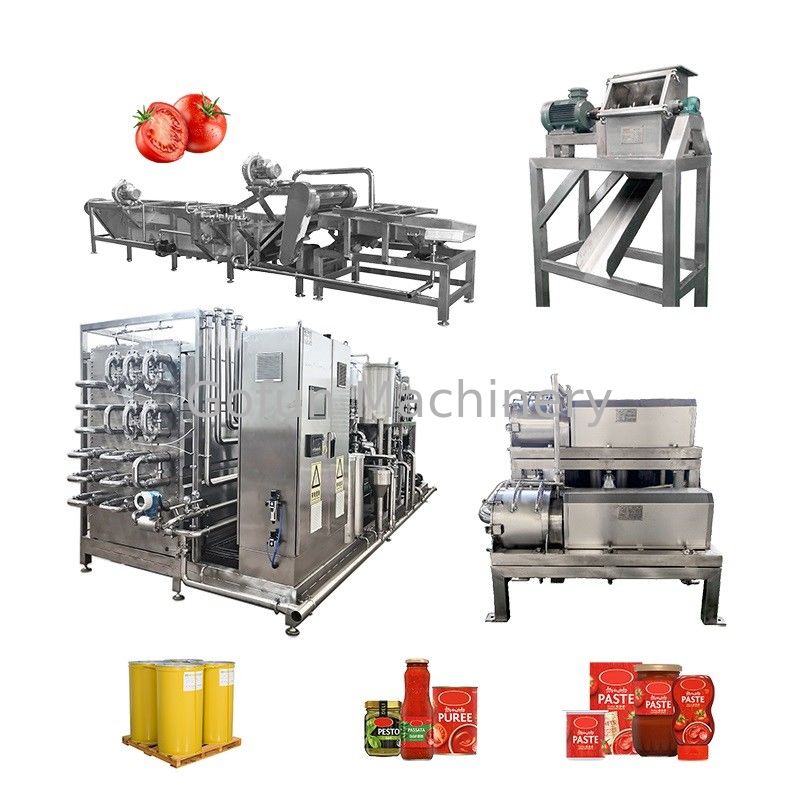

High-Capacity Tomato Sauce Processing Line

Automated ketchup production lines, featuring core equipment made of food-grade SUS304 stainless steel, offer significant benefits in industrial production. These lines incorporate automatic cleaning, sorting, pulping, concentrating, sterilizing, and filling processes, reducing manual involvement to lower labor costs and operational mistakes considerably.
With adaptable capacity ranging from 1 to 10 tons per hour, catering to both small and large facilities, these lines maintain consistent product quality by accurately regulating process parameters. This precision helps in preserving the authentic taste and nutrients of tomatoes effectively.

Complete Production Process

FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Key Features

Food-grade 304 stainless steel construction meeting FDA/CE standards
Intelligent temperature control (±1℃ precision) for consistent quality
Energy-saving design reducing operational costs by 25-30%
Customizable capacity from 500kg/h to 10t/h
PLC smart control system for automated operation
Easy-to-clean structure with minimal maintenance requirements
Versatile for various sauce types and packaging formats

Technical Specifications

Product Name	One-stop solution for tomato processing line
Fresh Fruit Input Capacity	500kg per hour ~ 25 tons per hour
Raw Material	Fresh tomato, tomato paste
End Product	Tomato paste, tomato sauce or ketchup, tomato juice, etc
Final Product Brix	28%~30%, 36%~38%
Main Machine Material	Food grade SUS304 or SUS316
Warranty	12 months after commissioning

Processing Functions

Raw Material Preparation: A vibrating screen eliminates defective tomatoes and impurities, while high-pressure bubble cleaning with brush rollers effectively cleans surfaces. Gentle conveying methods prevent skin damage.
Crushing and Pulp Extraction: A spiral crusher operates in a low-temperature environment to retain nutrients. A double-stage pulping machine separates pulp from peel and seeds.
Concentration and Pasteurization: Vacuum concentration at 60-70°C eliminates excess water while preserving lycopene. A tubular sterilizer employs 121°C rapid sterilization to eradicate microorganisms.
Final Product Packaging: An aseptic filling system prevents secondary contamination through capping, sealing, labeling, and boxing processes. Optional metal and weight detection systems are available.

Final Products & Packaging
